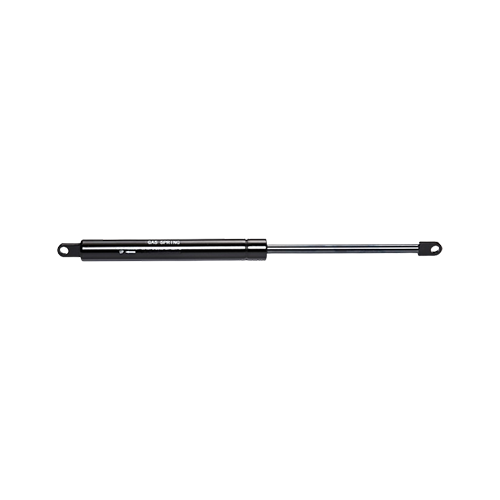

Gas Strut

Scroll

Detailed Information

Various End Fittings Available
Wide range of end fittings for different mounting and installation requirements.

Technical Specifications:

Cylinder Diameter (D)	Piston Rod (d)	Stroke (S)	Extended Length (L)	Force Low	Force High
15	6	Produce as needed	Produce as needed	2–10 KG	7–15 KG
18	8	Produce as needed	Produce as needed	5–20 KG	20–35 KG
19	8	Produce as needed	Produce as needed	5–20 KG	20–40 KG
22	10 / 12	Produce as needed	Produce as needed	8–60 KG	38–90 KG
25	12	Produce as needed	Produce as needed	10–80 KG	50–120 KG
28	10 / 12 / 14 / 16	Produce as needed	Produce as needed	15–100 KG	65–150 KG
